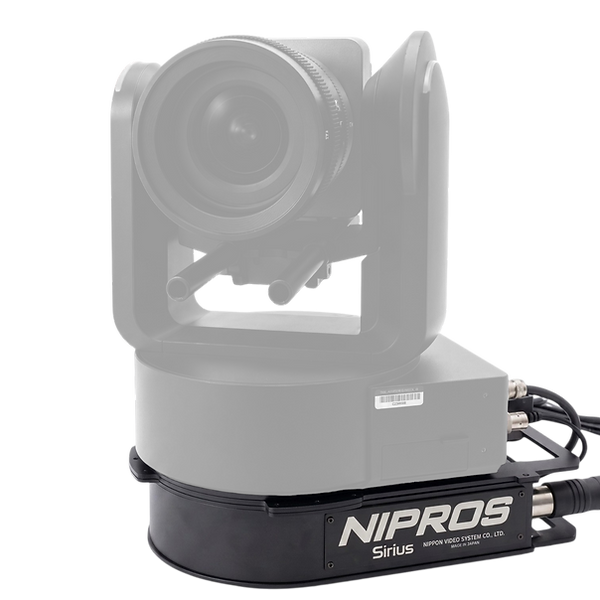

Zero-Delay High Power POE++ 4K
PTZ Camera Adapters
This powerful plug-and-play PTZ fiber system transforms any PTZ camera into a powerful broadcast-ready SMPTE-connected camera platform. With full-power DC output, SIRIUS PTZ can power any system with the native 19.5V, as well as a second camera via a breakout or POE+++ output. With zero-latency dual-12G inputs, a re-clocked 12G-capable Return Output and TC/GEN.
Four Sirius PTZ Models for Different Production Needs
The NIPROS Sirius PTZ series offers four models to suit different production needs and shooting environments. For broadcast studios and large-scale events requiring advanced multi-camera setups, the Sirius PTZ Pro MAX features dual PoE LAN ports and a RET OUT connection. The Sirius PTZ Pro, equipped with one PoE LAN port and one standard LAN port, is ideal for general multi-camera applications such as live streaming and event production. For high-quality 4K video production, the Sirius PTZ 12G is an excellent choice for single-camera setups, while the Sirius PTZ 3G offers a simple and practical solution for Full HD applications such as meetings, seminars, and educational environments.
Sirius PTZ
Pro MAX
Sirius PTZ
Pro
Sirius PTZ
12G
Sirius PTZ
3G
Easy to Set Up.
Ready to Go.
12G-SDI / 4K
Multiformat 12G-SDI input with loop-through for UHD and HD production chains.
RETURN / TIMECODE
Return output plus TC input/output for synchronized multicamera work.
LAN / CAMERA CONTROL
1Gbps LAN travels over fiber. Pro adds dual LAN, LAN1 PoE and native 8-pin SONY remote.
SYNC / TALLY
Reference, tally and camera status stay integrated with the live production channel.

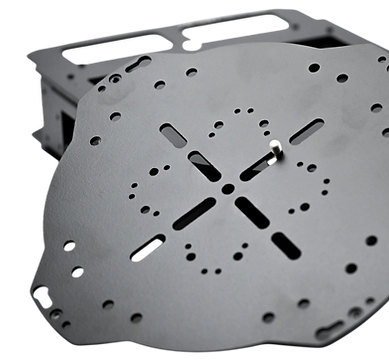

UNIVERSAL PLATE
Multi-hole mounting supports PTZ cameras across manufacturers and models.
LOW, RUGGED PROFILE
Low center of gravity, connector guards and transport-ready side handles support field use.
.png)

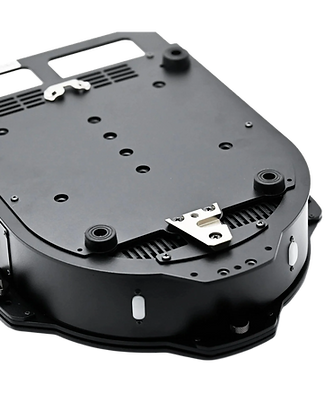

Versatile Installation Options
Multiple threaded mounting points, Built-in VCT Plate connection points for easy tripod setup, and durable silicone feet with leveling screws allow quick placement on any flat surface.
PTZ Bubble Level
Thoughtful design is essential, including a built-in bubble level allows technicians to quickly eyeball level when mounting the system on any platform or inverted rigging.
Camera Adaptor
Base Station
ITEM | Sirius PTZ-Pro Max | Sirius PTZ-Pro | Sirius PTZ 12G | Sirius PTZ 3G |
|---|---|---|---|---|
SDI IN | 12G-SDI x2 | 12G-SDI x2 | 12G-SDI x1 | 3G-SDI x1 |
SDI LOOP-THROUGH OUT | 12G-SDI x1 (re-clocked) | 12G-SDI x1 (re-clocked) | - | - |
SDI RETURN OUT | 12G-SDI x2 | 12G-SDI x1 | 12G-SDI x1 | 3G-SDI x1 |
HDMI IN | HDMI 2.0 x1 | - | - | - |
TIMECODE IN/OUT | IN/OUT BNC x2 | IN/OUT BNC x1 | IN BNC x1 | IN BNC x1 |
REFERENCE | BNC x1 | BNC x1 | BNC x1 | BNC x1 |
INTERCOM | XLR 4P (PGM / HS Mix) x1; XLR 3P (2W / Clear-Com) x1 | XLR 4P (PGM / HS Mix) x1 | - | - |
TALLY | DB25 : XLR 3P x1 (Dry); BNC x1 (Wet) | DB25 : XLR 3P x1 (Dry); BNC x1 (Wet) | - | - |
REMOTE | 8P Hirose x1 (S.Remote RS-422) | 8P Hirose x1 (S.Remote RS-422) | - | - |
LAN | RJ45 x2 (1Gbps / PoE++ 90W) | RJ45 x2 (1Gbps / LAN1 : PoE++ 90W) | RJ45 x1 (1Gbps) | RJ45 x1 (1Gbps) |
DC IN | XLR 4P x1 | XLR 4P x1 | XLR 4P x1 | XLR 4P x1 |
AC IN | - | - | - | - |
DC OUT | XLR 4P x1 (15VDC Max 5A) | XLR 4P x1 (15VDC Max 5A) | XLR 4P x1 (15VDC Max 5A) | XLR 4P x1 (15VDC Max 5A) |
OPTICAL CABLE | Tajimi / LEMO / ST / SC | Tajimi / LEMO / ST / SC | Tajimi / LEMO / ST / SC | Tajimi / LEMO / ST / SC |
RANGE | approx. 2km | approx. 1km | approx. 600m | approx. 600m |
